Input indentation length by button
Simple and practical，the price is affordable
Ferrous metals, non-ferrous metals, IC sheets, surface coatings, laminated metals; glass, ceramics, agate, gemstones, thin plastics, etc.; hardness test of the depth and gradient of the carbonized layer and quenching hardened layer.

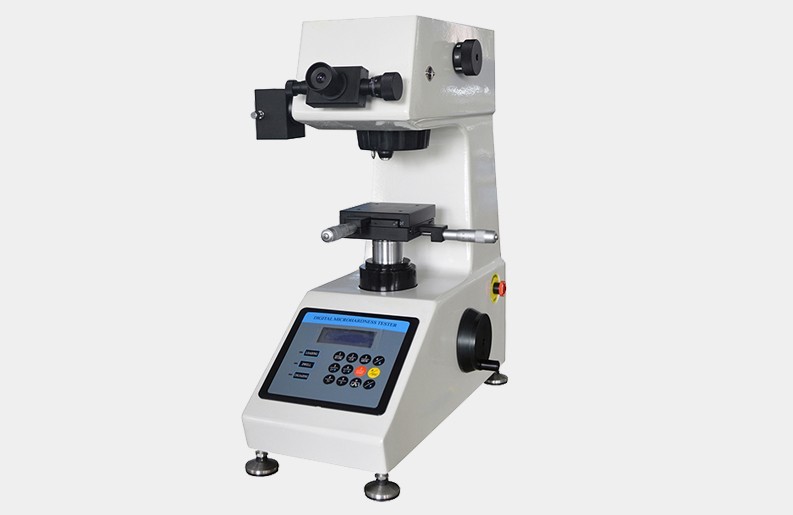

HV-1000 / HV-1000Z Micro Vickers Hardness Tester adopts unique precision design in mechanics, electronics and optics, making the indentation imaging clearer and the measurement more accurate. The test method, test force, dwell time, number of measurements, and conversion scale can be displayed on the screen. When operating, just input the diagonal length of the indentation from the keyboard, and the hardness value can be automatically calculated and displayed on the screen.
Optional Knoop indenter for Knoop hardness measurement, optional CCD image automatic measurement system.
HV-1000 / HV-1000Z Microscopic Vickers Hardness Tester
Main Parameters：
|
No |
Parameters |
HV-1000 |
HV-1000 |
|
|
1 |
Test force |
gf |
10gf, 25gf, 50gf, 100gf, 200gf, 300gf, 500gf, 1000gf |
|
|
N |
0.098N, 0.246N, 0.49N, 0.98N, 1.96N, 2.94N, 4.90N, 9.80N |
|||
|
2 |
Hardness testing mange |
1HV~2967HV |
||
|
3 |
Hardness resolution |
0.1HV |
||
|
4 |
Test mode |
HV/HK |
||
|
5 |
Test force application method |
Auto(Loading/Saturatiory/Unloading) |
||
|
6 |
Objective lens and indenter switch |
manual |
auto |
|
|
7 |
Conversion ruler |
HK, HRA, HRBW, HRC, HRD, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HBW |
||
|
8 |
objective lens and indenter switch |
10×(obervation) 40x(measurement) |
||
|
9 |
Eyepiece |
10× digital microreter eyepiece |
||
|
10 |
Total magnification |
100×，400× |
||
|
11 |
Effieient field of wiew |
200μm |
||
|
12 |
Minimum value of micrometer drum |
0.25μm |
||
|
13 |
Saturation time |
0~60s |
||
|
14 |
Light source |
Halogen lamp |
||
|
15 |
X-Y Test bench |
size: 100×100mm; strake2: 25×25mm; resalution: 0.01mm |
||
|
16 |
Max. height of sample |
90mm |
||
|
17 |
Distance from the center of the pressure hesd to the machine wall |
100mm |
||
|
18 |
Power Supply |
AC220V，50Hz |
||
|
19 |
Implementation standards |
ISO 6507，ASTM E384，JIS Z2244，GB/T 4340.2 |
||
|
20 |
Outer size |
480×325×545mm， outer psckage size: 600×360×800mm |
||
|
21 |
Weight |
N.W 31kg. G.W. 44kg |
||
Standard Configuration：
|
Name |
Quantity |
Name |
Quantity |
|
Machine Host |
1pc |
10×digital micrometer eyepiece |
1pc |
|
Diamond microscopic Vickers indenter |
1pc |
10×，40×objective lens |
1pc each |
|
Cross test bench |
1pc |
Sheet clamping table |
1pc |
|
Flat clamping table |
1pc |
Filament clamping table |
1pc |
|
Standard Hardness Block 400~500 HV0.2 |
1pc |
Standard Hardness Block 700~800 HV1 |
1pc |
|
Weights |
6pc |
Weight shaft |
1pc |
|
Level adjustment screw |
4pc |
Level |
1pc |
|
FuSe 1A |
2pc |
Halogen lamp12V、15~20W |
1pc |
|
Power cable |
1pc |
Screwdriver |
2pc |
|
Dust Cover |
1pc |
Product Certificate |
1pc |
|
Product Manual |
1pc |
|
|
