Integrated T-shaped lens design，superior stability
Providing good resolution and clear images by professional flat metallographic objective lens
Equipped with tilted observation tube，comfortable observation angle
Five-hole turntable filter set (blue、green、yellow、gray、through hole)
Five-hole objective lens converter，maximum magnification 1000X
Suitable for microscopic observation of opaque or transparent objects. It has compact structural design, atmospheric and stable appearance, more flexible operation. It integrates a variety of observation functions such as bright field, dark field, polarization, DIC differential interference, etc., which can be selected according to actual applications. It is an ideal tool for research on metals, minerals, precision engineering, electronics, etc.。
High-precision stage, platform area 310mm x 240mm
Removable range: 150mm x 100mm mechanical stage, coaxial adjustment in X and Y directions.
The field diaphragm limits the diameter of the beam entering the condenser, thereby excluding peripheral light and enhancing image contrast. When the image of the field diaphragm is just at the outer edge of the field of view, the objective lens can perform at its best and obtain the clearest image.
Different from traditional metallographic microscopes, metallographic system microscopes of Truer have chosen a compact structural design, with a dignified and stable appearance and more flexible operation.
It integrates a variety of observation functions such as bright field, dark field, polarization, DIC differential interference, etc., which can be selected according to actual applications.
Trinocular (0/100 split), transflective LED adjustable light source, polarizing device, ensure excellent resolution and clarity
Five-hole rotating disc filter set (blue, green, yellow, gray, through hole) to meet different needs

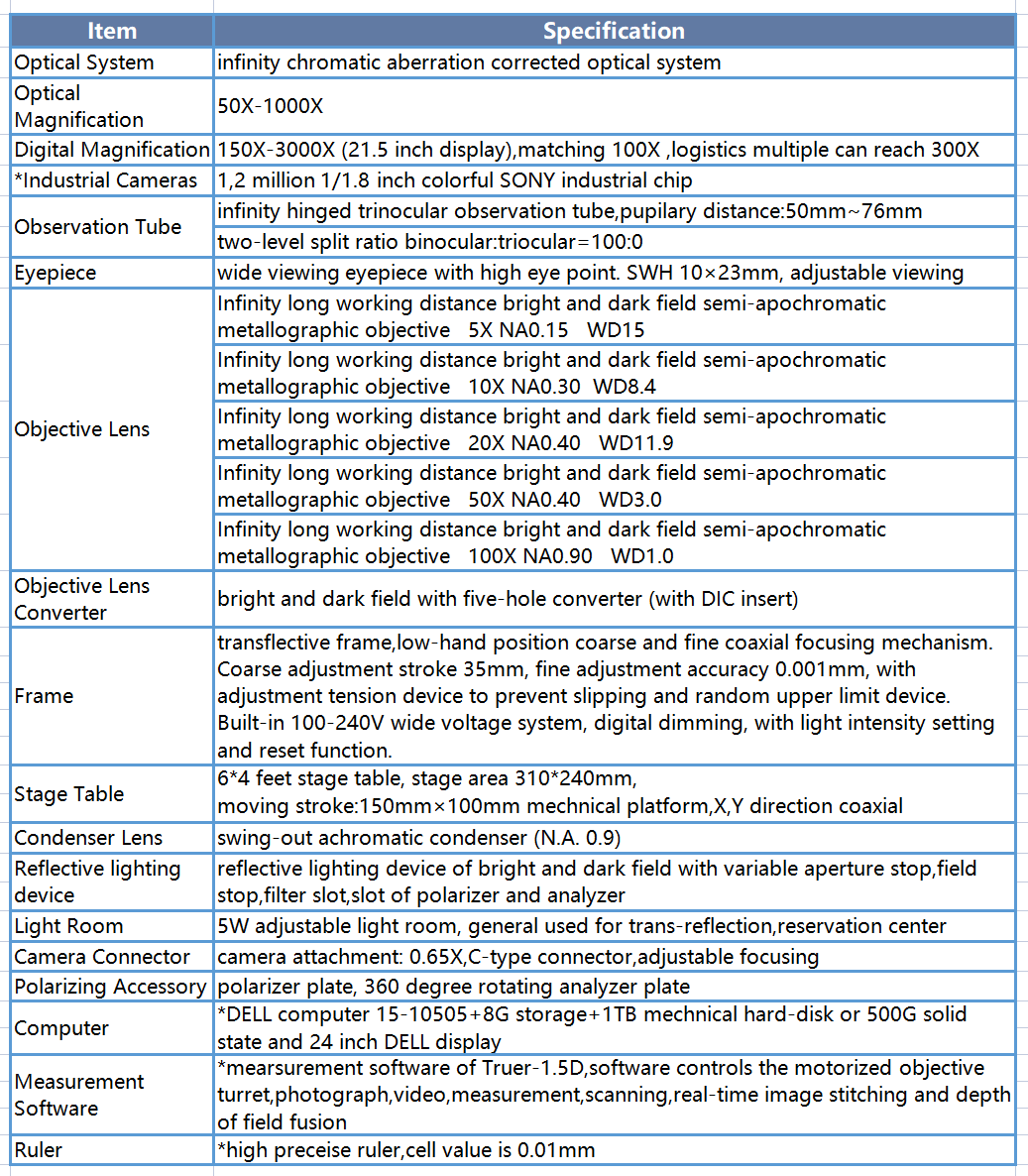

MTF12-QBD Upright Metallography Microscope
The MTF12-QBD upright metallographic microscope of Truer represents the simplest and most convenient microscope design and operation. It improves work efficiency and reduces the difficulty of operation and observation time by providing high -quality optical devices and lighting systems.
.png)
