Can realize bright and dark field observation function.

Maximum magnification: 1000X.

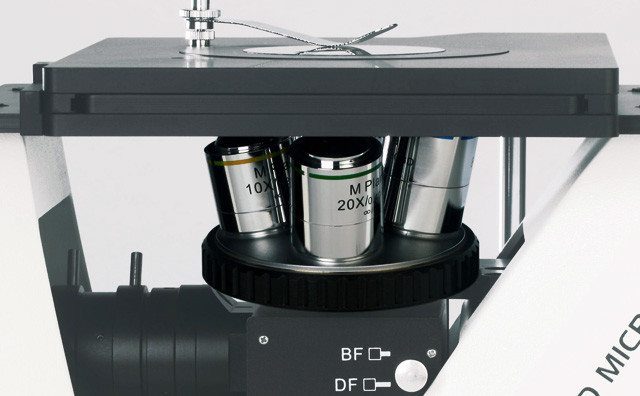

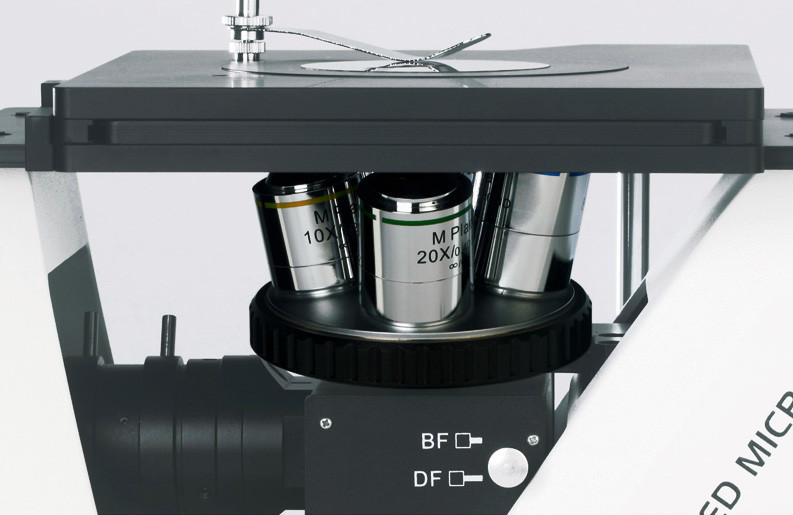

Built-in 4-hole converter, objective lens: 5X/10X/20X/50X/100X optional.

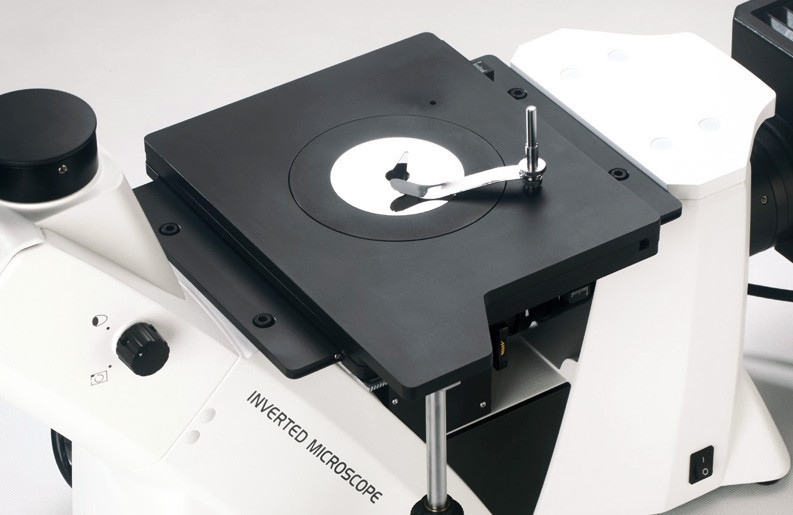

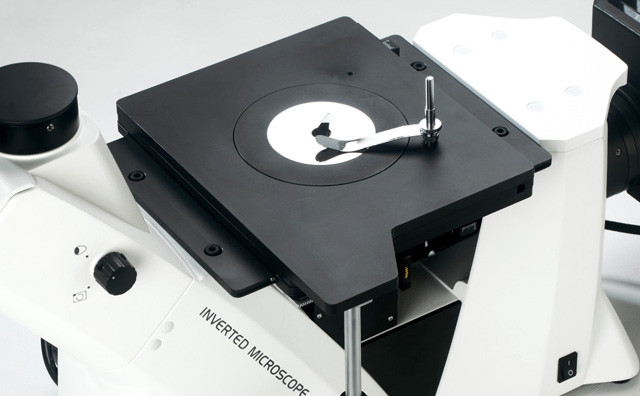

Ultra-large area, three-layer mechanical moving stage (area 210mmx180mm, moving range 50x50mm, vernier scale 0.1mm).

Integrated T-shaped lens design provides superior stability.

The translation and lifting focusing design makes the microscope lens structure more reasonable and the image observation more comfortable.

Coaxial coarse and fine focusing, stroke of coarse adjustment is 10mm, 0.2mm per circle, 2µm grid value, coarse adjustment with tension adjustment.

The observation is flatter and more comfortable by using ultra-wide field of view eyepiece.The field of view can reach 23mm.

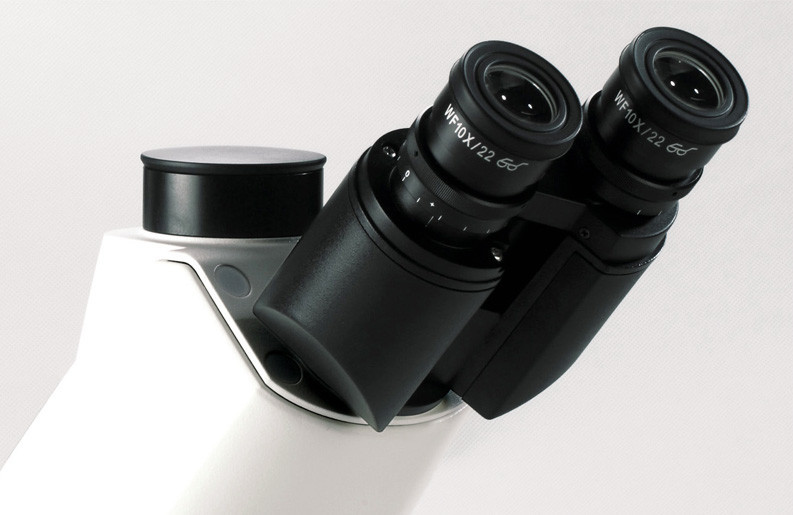

10X wide field of view, high eye point flat field eyepiece, field of view Φ22mm.

Providing a bright and sufficient lighting system by 12V/50W adjustable halogen lamp.

Providing good resolution and clear images by professional flat field metallographic objective lens.

Polarizing and analyzing inserts, providing polarized light observation.

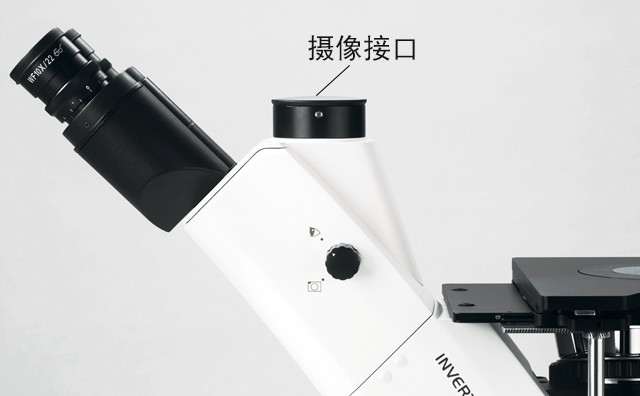

Equipped with camera interface: 1X/0.5XC-Mount interface.

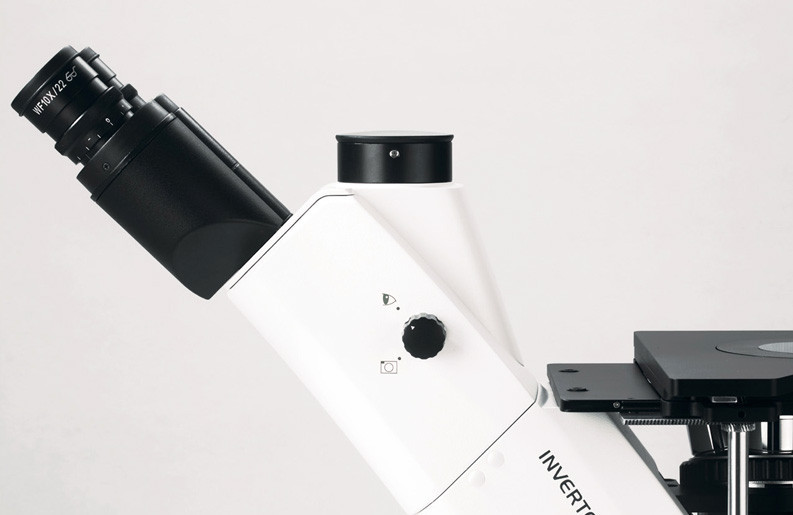

Articulated trinocular tube 2/8 beam splitting, 45° tilt, pupil distance adjustment 48~76mm, two-speed conversion, observation and photography can be carried out simultaneously.
