Large cutting chamber，maximum cutting diameter can be 70mm，square sample can be 165*50mm
Best motor，rotation speed is 300~5000rpm，meeting the variable speed precise cutting of all kinds materials.
A variety of fixtures to meet the cutting of samples of various shapes and sizes
The cutting disc diameter is optional from 75 to 203mm and the minimum cutting gap can be 0.3mm
The cutting disc can be adjusted within a range of 40mm，which can maximize the use of the wear of the cutting disc.

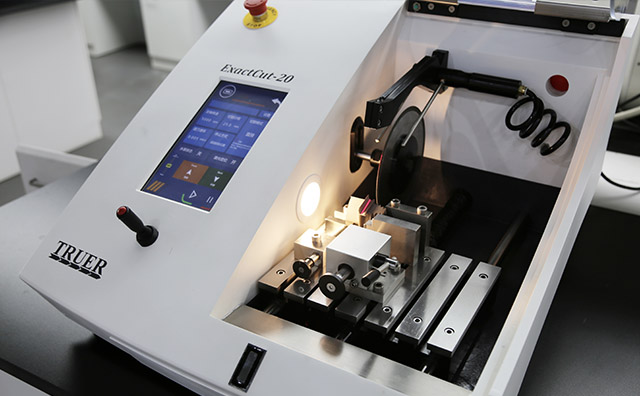

ExactCut-10/20 (abbreviated as "E-10/E-20") is a precision cutting machine that can accurately cut small and medium-sized samples. It can cut most materials such as metals, ceramics, composite materials, electronic components, minerals, crystals, etc. It is flexible and easy to use. It is greatly saving the cost of consumables by the operating lever of the workpiece can be positioned and the height of the cutting disc can be adjusted up and down.It is not only suitable for a variety of different fixtures, but also allows to use even if the outer diameter of the cutting to be worn from 203mm to 75mm/100mm.
Large cutting chamber for different sizes and shapes
Compared with the same type of precision cutting machines, it has a spacious cutting room and a wide workbench (258x184mm).
It has the ability to cut large workpieces.The maximum cutting diameter is 70mm and a square sample with a size of 165x50mm.

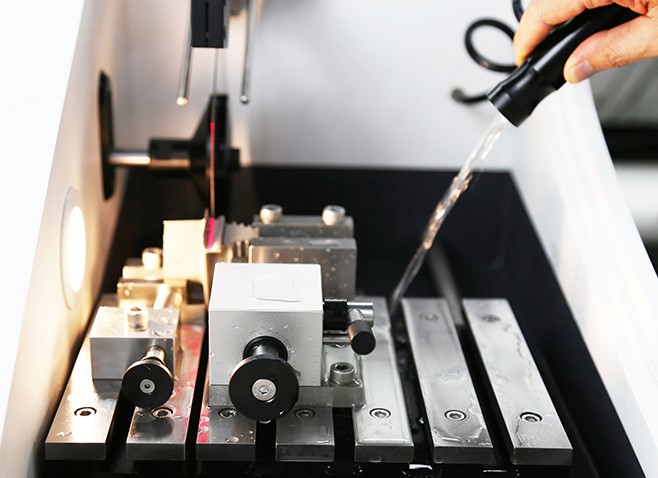

The cutting table is designed with an 8mm T-slot, which can flexibly clamp different fixtures. One precision cutting machine can achieve precision cutting of most materials and samples of different sizes and shapes.
Abundant and flexible fixtures
8mm T-slot equipped with flexible and diverse clamps. There is always a clamp that can meet your high-precision cutting needs.
Provide a wide variety of clamps and clamp seats to firmly clamp the workpiece.
The automatic X table is an option for batch cutting.
The total stroke of batch cutting can move 40mm.It can realize three batch modes: equidistant cutting, non-equidistant cutting and knife cutting.
The automatic X table ensures the accuracy of the cutting length.

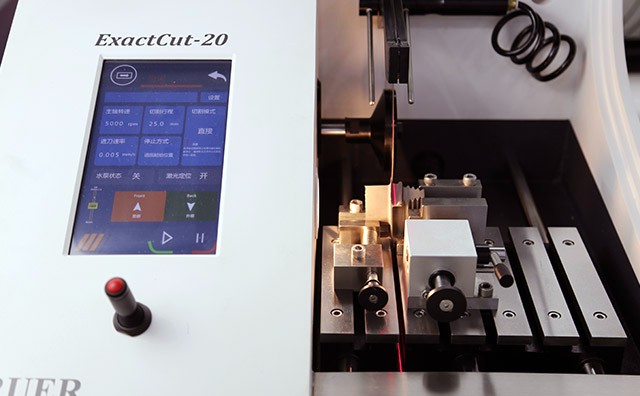

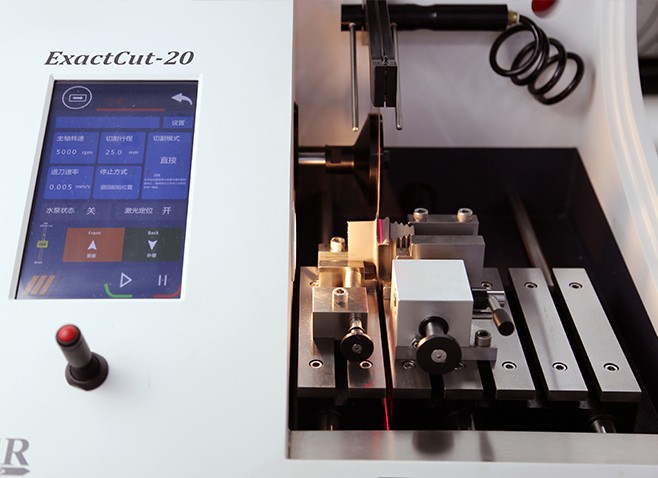

The cross-operating lever plus the 10-inch touch screen, with a simple and easy-to-use control interface, makes it very easy for the operator to get started.
The parameter settings are intuitive and easy to understand, and about 40+ cutting methods can be saved.
ExactCut-10/20 (abbreviated as "E-10/E-20") is a precision cutting machine
that can accurately cut small and medium-sized samples.
It can cut most materials such as metals, ceramics, composite materials,
electronic components, minerals, crystals, etc. It is flexible and easy to use.
It is greatly saving the cost of consumables by the operating lever of the
workpiece can be positioned and the height of the cutting disc can be
adjusted up and down.It is not only suitable for a variety of different
fixtures, but also allows to use even if the outer diameterof the cutting
to be worn from 203mm to 75mm/100mm.It greatly save costs.
Demo
ExactCut-10/20
ExactCut-10/20 (abbreviated as "E-10/E-20") is a precision cutting machine that can accurately cut small and medium-sized samples. It can cut most materials such as metals, ceramics, composite materials, electronic components, minerals, crystals, etc.
.png)
PDF
下载
The customer's agreement is truly good! Whether it's products or services, the genuine feedback from customers is the source of our continuous improvement. Customer recognition is our unparalleled glory.
Truer has experience engineers in technology service and experts who has abundant sample preparation skills and can provide the customized service to you.We will provide the professional preparation skill and operating proposals also can install and debug on-site.Warranty is one year for the equipment and lifetime maintenance.The technical support online and skills training can be provided annual.
