One-piece cast iron structure，electric loading test force
Stable structure，easy operation
Applicable to surface hardened steel, material surface heat treatment and chemical treatment layer, copper, aluminum alloy, thin plate, galvanized, chrome-plated, tin-plated materials, bearing steel, cold hard castings, etc.
HRM-45DT electric surface Rockwell hardness tester adopts automatic loading and unloading test force mechanism. The test force change is obtained by rotating the variable load hand-wheel. The holding time can be selected. The operation is simple and fast. Except for the dial zeroing, there is no artificial operation error. It has high sensitivity and stability.

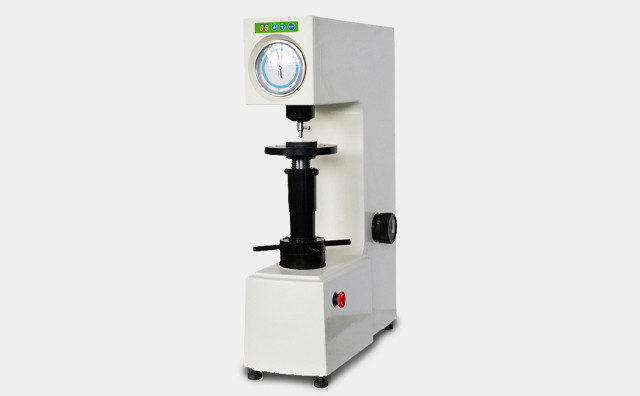

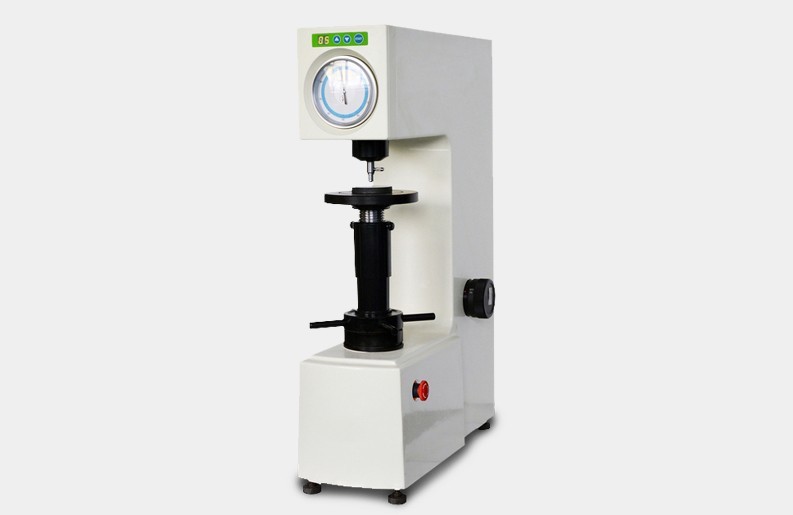

HRM-45DT Motorized Surface Rockwell Hardness Tester
Main Parameters：
|
No |
Parameters |
Date |
|
1 |
First test force |
3kgf (29.42N) |
|
2 |
Total test force |
15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N) |
|
3 |
Press-head specification |
Diamond Rockwell indenter, Φ1.588mm ball indenter |
|
4 |
Test force application method |
auto(Loading, Saturationv, Uinloading) |
|
5 |
Hardness reading |
Rockvell handness dial surface Rockwell disc |
|
6 |
Hlardness resolution |
0.5HR |
|
7 |
Saturation time |
2~60s |
|
8 |
Max. height of sample |
185mm |
|
9 |
Distanoe from the center of the pressure head to the machine wall |
165mm |
|
10 |
Implementation standards |
AC220V，50Hz |
|
11 |
Power supply |
ISO 6508，ASTM E18，JIS Z2245，GB/T 230.2 |
|
12 |
Outer size |
520×215×700mm， outer package size: 650×370×950mm |
|
13 |
Wcight |
N.W 73kg Gw, 100kg |
Standard Configuration：
|
Name |
Quantity |
Name |
Quantity |
|
Machine Host |
1pc |
Diamond Rockwell indenter |
1pc |
|
Φ1.588mm Ball indenter |
1pc |
Φ150mm Flat Test Bench |
1pc |
|
Φ60mm Flat Test Bench |
1pc |
Φ40mm V-Type Test Bench |
1pc |
|
Standard Hardness Block 70~85 HR30TW |
1pc |
Standard Hardness Block 80~90 HR15N |
1pc |
|
Standard Hardness Block 65~80 HR30N |
1pc |
Weights A, B, C |
1pc each |
|
Power cable |
1pc |
Fuse 2A |
1pc |
|
Level |
1pc |
Level adjustment screw |
1pc |
|
Hexagon wrench |
1pc |
wrench |
1pc |
|
Dust Cover |
1pc |
Product Certificate |
1pc |
|
Product Manual |
1pc |
|
|
