Small load test force to measure Brinell hardness
It is easy to measure by digital display micrometer eyepiece
Dual objective automatic turret which can change objective at any time to measure indentations of different sizes
Applicable to the hardness measurement of materials such as cast iron, steel, non-ferrous metals and soft alloys, and also suitable for the hardness measurement of some non-metallic materials such as hard plastics and bakelite.
.jpg)

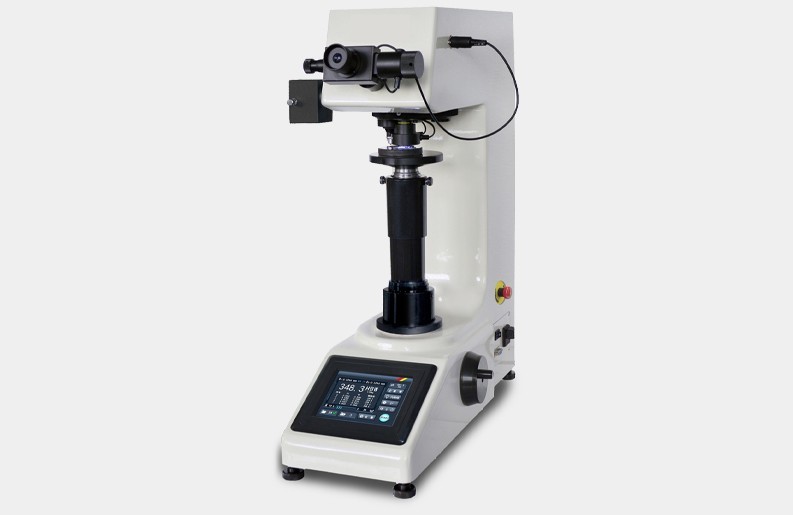

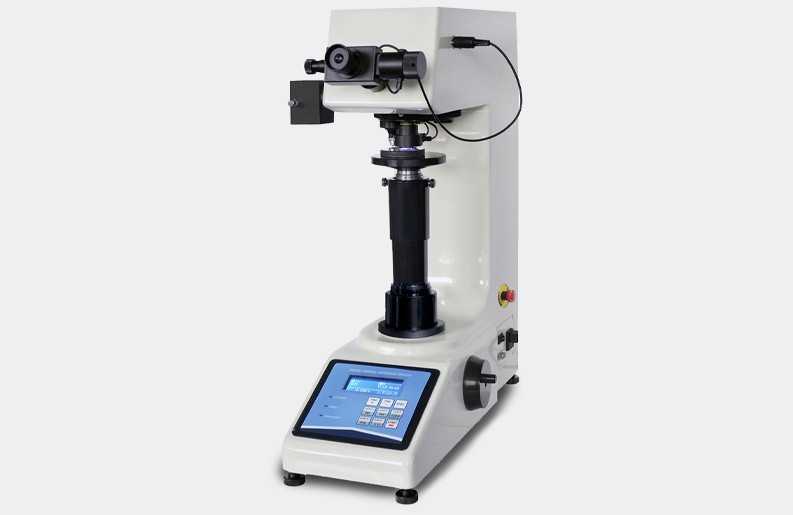

601MHB digital display small load Brinell hardness tester is a high-tech product integrating opto-mechanical and electrical. It has a novel and beautiful shape, good intuitiveness, operability and reliability. It is an ideal product for testing small load Brinell hardness.
This instrument has 8 levels of test force and 9 test Brinell scales for optional selection; it has two sets of objective lenses, 5× and 10×, and both can participate in the measurement; automatic switching between objective lens and indenter; the test force holding time can be preset and the strength of the measuring light source can be adjusted; the halogen lamp and LED dual light source design can cope with various sample surfaces; it automatically displays the measured indentation length, hardness value, number of measurements, etc.; the data results can be output through the built-in printer, and it is equipped with an RS232 interface for users to connect to the computer for output; it can also be configured with a video measurement device and a CCD image automatic measurement system according to the user's special requirements.
601MHB Digital Small Load Brinell Hardness Tester
Main Parameters：
|
No |
Parameters |
Data |
|
|
1 |
Test force |
kgf |
1kgf, 5kgf, 6.25kgf, 10kgf, 15.625kgf, 30kgf, 31.25kgf, 62.5kgf |
|
N |
9.807N, 49.03N, 61.29N, 98.07N, 153.2N, 294.2N, 306.5N, 612.9N |
||
|
2 |
Hardness testing range |
3.18～653HBW |
|
|
3 |
Hardness resolution |
0.1HBW |
|
|
4 |
Data output |
built-in printer, RS232 connector |
|
|
5 |
Test force application method |
auto(Loading/ Saturatior/ Uhloading) |
|
|
6 |
Objective lens and indenter switch |
auto |
|
|
7 |
Eyepiece |
10×digital micrometer eyepiece |
|
|
8 |
Objective lons and indentor switch |
5×，10× |
|
|
9 |
Total magnification |
50×，100× |
|
|
10 |
Effieient fleld of view |
50×: 1.6mm，100×: 0.8mm |
|
|
11 |
Minimum value of micrometer drum |
50×: 0.5μm，100×: 0.25μm |
|
|
12 |
Ssturation time |
0~60s |
|
|
13 |
Light souroe |
Halogen lamp/LED cold light source |
|
|
14 |
Max. height of sample |
185mm |
|
|
15 |
Distance from the center of the pressure head to the machine wall |
130mm |
|
|
16 |
Power Supply |
AC220V，50Hz |
|
|
17 |
Implementation standards |
ISO 6506，ASTM E10，JIS Z2243，GB/T 231.2 |
|
|
18 |
Outer size |
530×280×630mm, outer package size:620×450×760mm |
|
|
19 |
Weight |
N.W 35kg. G.W. 47kg |
|
Standard Configuration：
|
Name |
Quantity |
Name |
Quantity |
|
Machine Host |
1pc |
10×digital micrometer eyepiece |
1pc |
|
5×、10× objeclive lens |
1pc each |
1mm, 2.5mm, 5mm Ball indenter |
1pc each |
|
Φ108mm Flat Test Bench |
1pc |
Φ40mm V-Type Test Bench |
1pc |
|
Standard Hardness Block 90~120 HBW 2.5/62.5 |
1pc |
Standard Hardness Block 180~220 HBW 1/30 |
1pc |
|
Screwdriver |
1pc |
Hexagon wrench 2.5mm |
1pc |
|
Level |
1pc |
Level adjustment screw |
4pc |
|
Fuse 1A |
2pc |
Power cable |
1pc |
|
Dust Cover |
1pc |
Product certificate |
1pc |
|
Product Manual |
1pc |
Printer Manual |
1pc |
