Test force closed-loop control system
Traditional model，durable
External digital display micrometer eyepiece，convenient measurement，direct display of hardness value
Applicable to the hardness measurement of materials such as cast iron, steel, non-ferrous metals and soft alloys, and also suitable for the hardness measurement of some non-metallic materials such as hard plastics and bakelite.
-MHB-3000 digital Brinell hardness tester is a mechatronics product with precise mechanical structure and microcomputer controlled closed loop system. The instrument cancels the weight and adopts electric loading and unloading test force. The pressure sensor with 0.5‰ accuracy provides feedback. The CPU controls and can automatically compensate for the test force lost during the test.
The instrument is connected to a digital micrometer eyepiece. There is no need to lookup form or type in the indentation length. The hardness value and test force, holding time, indentation length, etc. can be directly displayed on the LCD screen. When operating, just press the eyepiece button after measuring the indentation, and the hardness value can be automatically calculated and displayed on the screen. The reading is accurate and the operation is convenient.

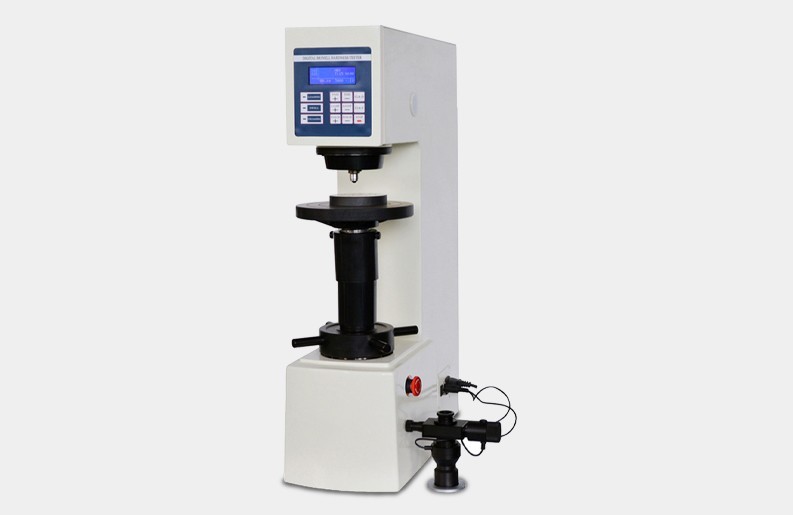

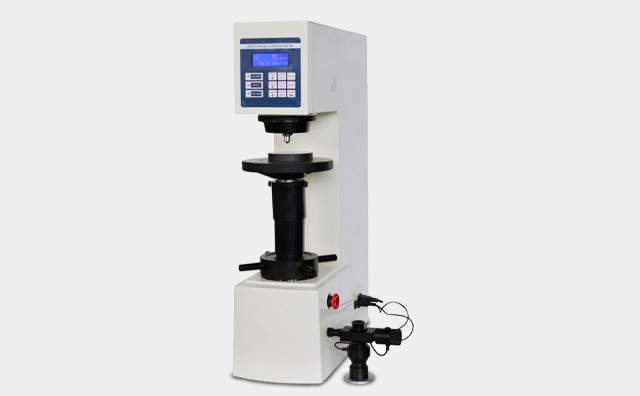

MHB-3000 Digital Display Brinell Hardness Tester
Main Parameters：
|
No |
Parameters |
Data |
|
|
1 |
Test force |
kgf |
62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf |
|
N |
612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N |
||
|
2 |
Hardness testing range |
3.18～653HBW |
|
|
3 |
Hardness roading |
digital LCD to mad hardness value |
|
|
4 |
Hardness resolution |
0.01HBW |
|
|
5 |
Microscope |
20× digital micrometer eyepiece |
|
|
6 |
Efficiont field of view |
6mm |
|
|
7 |
Minimum yalue of micrometer dnum |
0.001mm |
|
|
8 |
Saturation time |
0~60s |
|
|
9 |
Maxc height of sample |
205mm |
|
|
10 |
Distance from the center of the pressure head to the machine wall |
130mm |
|
|
11 |
Power Supply |
AC220V，50Hz |
|
|
12 |
Implementstion standards |
ISO 6506，ASTM E10，JIS Z2243，GB/T 231.2 |
|
|
13 |
Outer size |
545×235×755mm， outer package size:650×435×1020mm |
|
|
14 |
wrelght |
N.W T30kg.G.W. 160kg |
|
Standard Configuration：
|
Name |
Quantity |
Name |
Quantity |
|
Machine Host |
1pc |
20×digital micrometer eyepiece |
1pc |
|
2.5mm, 5mm, 10mm Ball indenter |
1pc each |
Φ200mm Flat Test Bench |
1pc |
|
Φ60mm Flat Test Bench |
1pc |
Φ80mm V-Type Test Bench |
1pc |
|
Standard Hardness Block 150~250 HBW 10/3000 |
1pc |
Standard Hardness Block 150~250 HBW 5/750 |
1pc |
|
Fuse 2A |
2pc |
Power cable |
1pc |
|
Hexagon wrench 3mm |
1pc |
Dust Cover |
1pc |
|
Product certificate |
1pc |
Product Manual |
1pc |
