Material background

A welded joint refers to a joint where two or more parts are welded together. Or it refers to a joint where two or more parts are connected by welding, including weld, fusion zone and heat-affected zone. A fusion welded joint is formed by local heating from a high-temperature heat source. A welded joint consists of weld metal, fusion zone, heat-affected zone and parent metal.

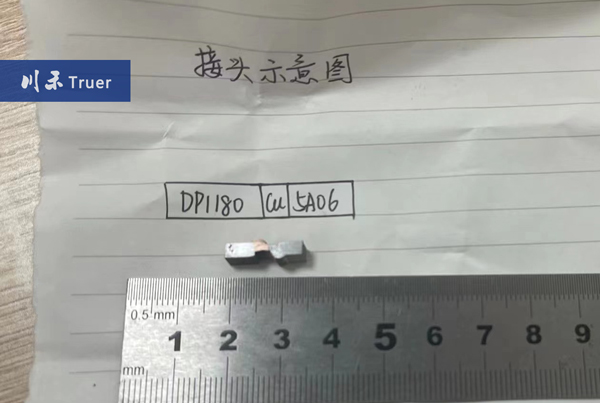

This time, a three-metal welded joint of "duplex steel-pure copper-aluminum alloy" was prepared.

Graphs and Analysis

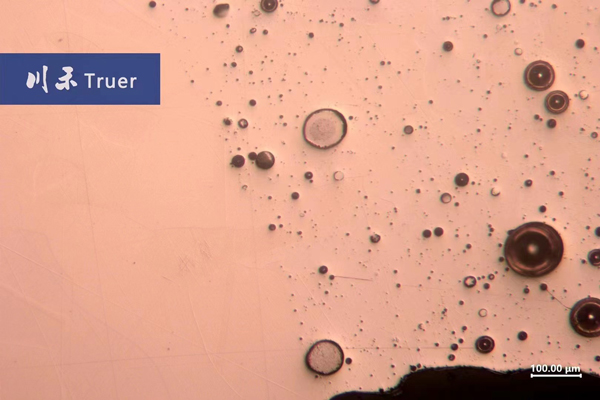

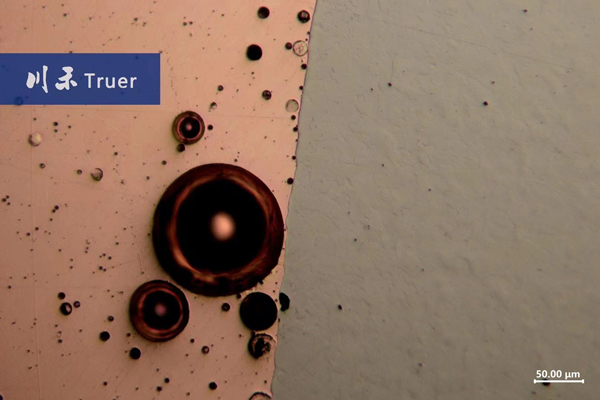

Copper substrate 100X Copper Steel Junction 200X

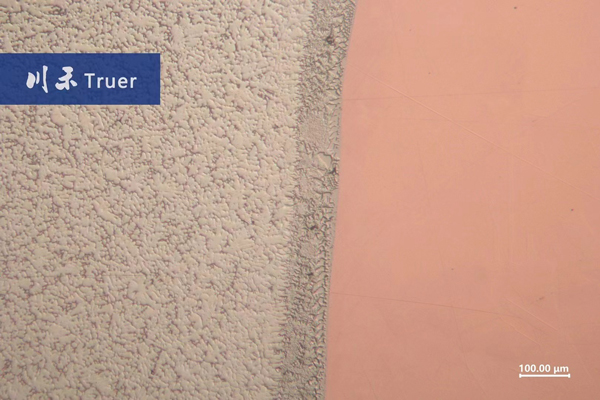

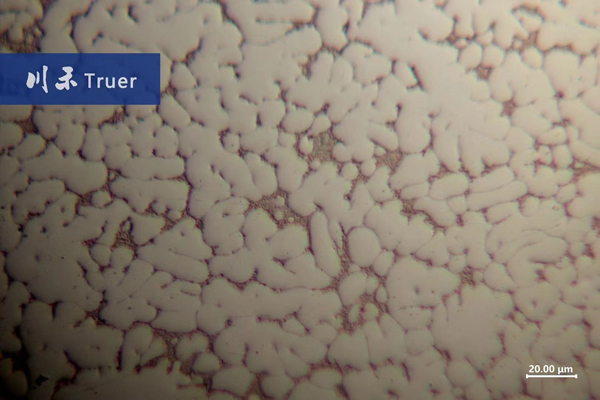

Aluminum substrate 500X Aluminum-copper junction 100X

*The above pictures may not be reproduced without permission, otherwise legal liability will be pursued.

Solution

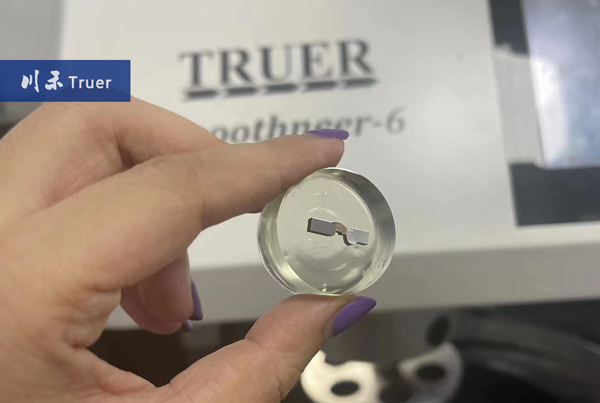

Mounting：

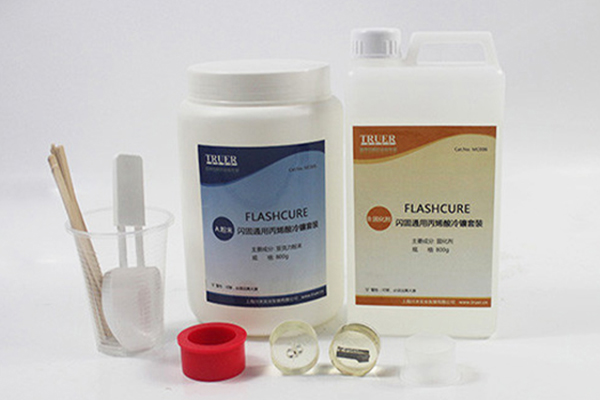

MC006Flash Solid High Transparency Universal Cold Mounting Kit MC006 Cold Mounting Sample

Grinding & Polishing

Smoothneer-6 Metallographic Automatic Grinding and Polishing Machine PCX Porous Neoprene Polishing Cloth

The step of grinding & polishing		coarse Grnding	coarse Grnding	Fine Grinding	Medium Polishing	Diamond Fine Polishing	Diamond Fine Polishing	Diamond Fine Polishing
1	Surface	SiC sandpaper	SiC sandpaper	SiC sandpaper	SiC sandpaper	GD-PCY Wool fabric	GD-PCV shortvelvet(fannel)	GD-PCX Porous mubber
2	Abrasive Granularity	400#	800#	1200#	4000#	3μm	1μm	0.04um
3	Polishing/ Lubricant	-	-	-	-	DS001 High performance polycrystalline diamond suspension	DS001 High performance polycrystalline diamond suspension	SiS001-JP Silicon dioxide polishing liquid
4	Pressure	30N	30N	30N	25N	25N	20N	15N
5	Rotation Speed	300	300	300	300	150	150	150
6	Time/s.	70	120	120	120	180	120	240

The above recommended parameters are taken from: Smoothneer-6 Metallographic Automatic Grinding and Polishing Machine Aluminum Sample Preparation Method.
