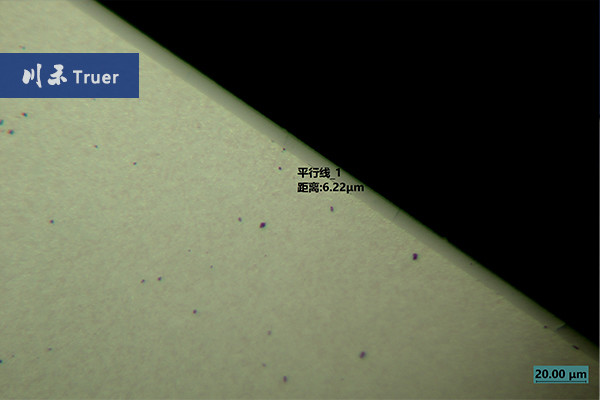

Coating thickness measurement taken with a 500X MTF-300 microscope
*The above pictures may not be reproduced without permission, otherwise legal liability will be pursued.
Mounting：
Choose a hot-mounting resin with high hardness and good edge retention for mounting.

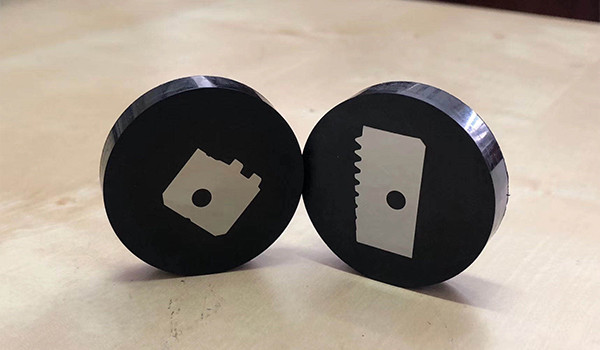

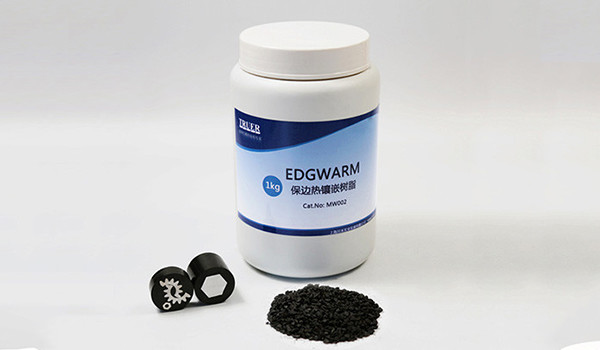

MW002 EDGWARM edge-preserving hot-mounting resin The sample after mounting
Grinding and polishing：
|
The step of grinding & polishing |
Coarse Grinding |
Coarse Grinding |
Diamond Medium Polishing |
Diamond Fine Polishing |
Diamond Final Polishing |
|
|
1 |
Surface |
|||||
|
2 |
Abrasive Granularity |
9μm |
9μm |
9μm |
3μm |
1μm |
|
3 |
Polishing/ Lubricant |
|||||
|
4 |
Pressure |
35N |
35N |
30N |
30N |
25N |
|
5 |
Rotation Speed |
300 |
150 |
150 |
150 |
150 |
|
6 |
Time/min |
3 |
4 |
3 |
3 |
3 |
The above recommended parameters are taken from: Sample preparation method of Ф30 mm cemented carbide with Ф250 mm working disc on automatic grinding and polishing machine Smoothneer-6.
Truer has experience engineers in technology service and experts who has abundant sample preparation skills and can provide the customized service to you.We will provide the professional preparation skill and operating proposals also can install and debug on-site.Warranty is one year for the equipment and lifetime maintenance.The technical support online and skills training can be provided annual.
