Material background

Carbon fiber is an inorganic high-performance fiber with a carbon content of more than 90% that is transformed from organic fiber through a series of heat treatments. It is a new material with excellent mechanical properties. It has the inherent characteristics of carbon materials and the softness and processability of textile fibers. It is a new generation of reinforcing fibers. The main use of carbon fiber is to be compounded with resins, metals, ceramics and other matrices to make structural materials.

Carbon fiber composites are widely used in sports equipment, textiles, chemical machinery and medicine.
The following samples are from: badminton racket tube

The goal of customer: observe fiber arrangement and pore size

Graphs and Analysis

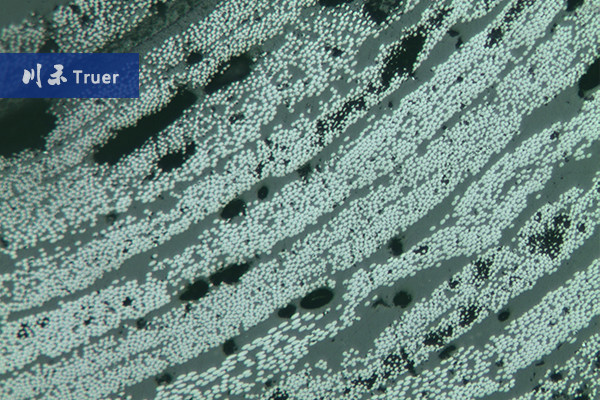

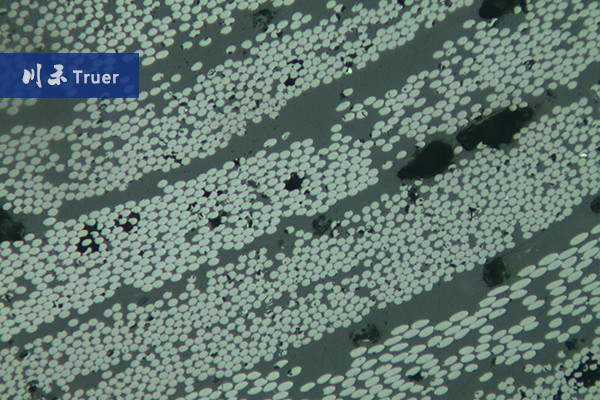

Carbon fiber composite material photographed with a 100X MF-DS microscope Carbon fiber composite material photographed with a 200X MF-DS microscope

*The above pictures may not be reproduced without permission, otherwise legal liability will be pursued.

Solution

Mounting：

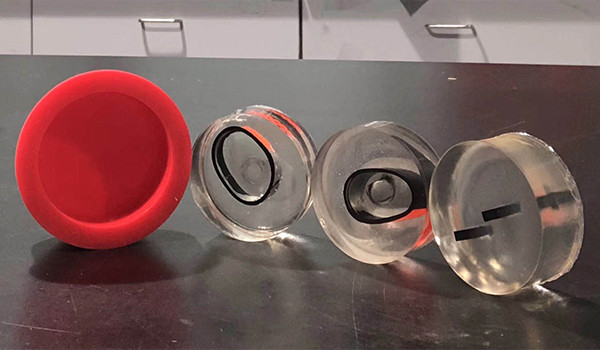

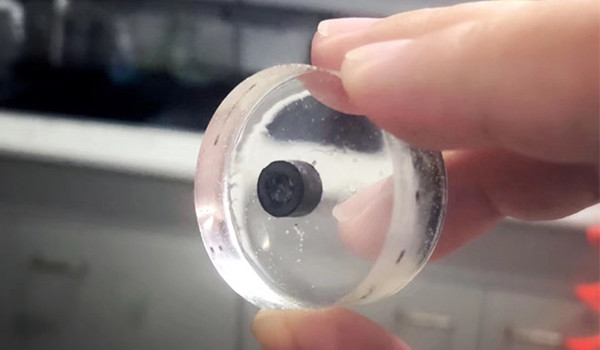

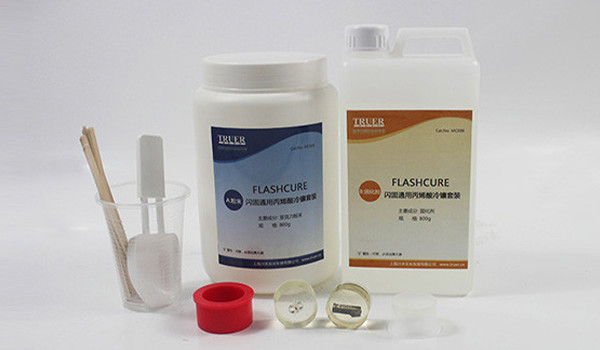

MC006 Flash Solid High Transparency Universal Cold Mounting Kit The sample after mounting

Grinding & polishing：

The step of grinding & polishing		Coarse Grinding	Fine Grinding	Diamond Coarse Polishing	Diamond Fine Polishing	Diamond Final Polishing
1	Surface	GD-Dia	GD-Sof	PCM canvas	PCY Wool fabric	PCV red short velvet
2	Abrasive Granularity	220#		9μm	3μm	1μm
3	Polishing/ Lubricant	Alcohol, polishing lubricant coolant	Alcohol, polishing lubricant coolant	DS001High performance polycrystalline diamond suspension	DS001High performance polycrystalline diamond suspension	DS001High performance polycrystalline diamond suspension
4	Pressure	30N	25N	25N	20N	15N
5	Rotation Speed	300	300	150	150	150
6	Time/'min.	3	4	3	2~5	2~3

The above recommended parameters are taken from: Sample preparation method of Ø30 mm cast iron with Ø250 mm working plate on automatic grinding and polishing machine Smoothneer-6.
