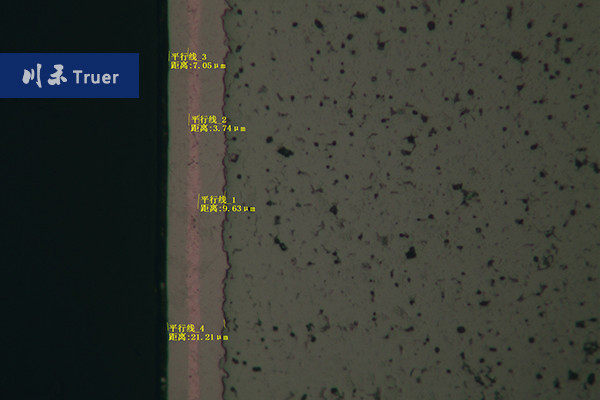

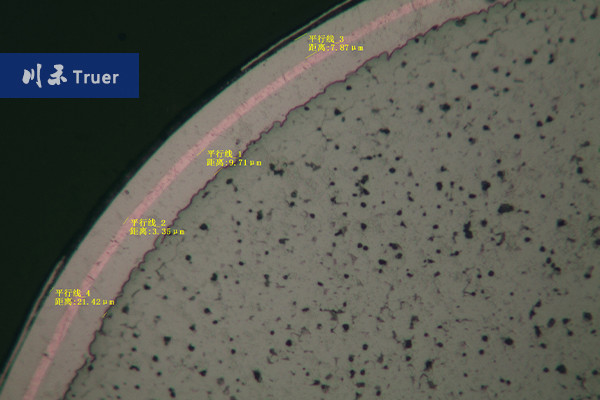

Coating thickness measurement, photographed with a 500X MTF-300 microscope Coating thickness measurement, photographed with a 500X MTF-300 microscope
*The above pictures may not be reproduced without permission, otherwise legal liability will be pursued.
Mounting：

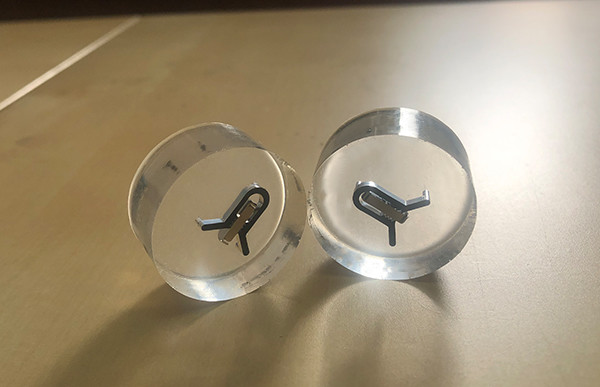

MC002 Extremely fast, hard and clear cold mounting kit The sample after mounting
Grinding & Polishing：
|
The step of grinding & polishing |
Coarse Grinding |
Fine Grinding |
Diamond Coarse Polishing |
Diamond Fine Polishing |
Diamond Final Polishing /oxide polishing |
|
|
1 |
Surface |
|||||
|
2 |
Abrasive Granularity |
400# |
800#、1200#、4000# |
3μm |
1μm |
0.05μm |
|
3 |
Polishing/ Lubricant |
water |
water |
|||
|
4 |
Pressure |
30N |
25N |
25N |
20N |
15N |
|
5 |
Rotation Speed |
300 |
300 |
150 |
150 |
150 |
|
6 |
Time/min. |
1 |
2 |
3~5 |
2~3 |
2~5 |
The above recommended parameters are taken from: Preparation method of copper and copper alloy samples with a diameter of 30 mm and a diameter of 250 mm on the automatic grinding and polishing machine Smoothneer-6.
