Customer Cases

Case studies are our strength

Truer can test and verify different sample preparation solutions for customers for different materials in a short period of time, ensuring that customers can quickly obtain ideal sample preparation results with repeatability.

材料背景
图与分析
解决方案
联系专家

Material background

6063 aluminum alloy is a heat-treatable aluminum alloy belonging to the aluminum-magnesium-silicon series. The chemical composition of 6063 aluminum alloy is 0.2-0.6% silicon, 0.45-0.9% magnesium, and the maximum limit of iron is 0.35% in GB/T5237-93 standard. The remaining impurity elements (Cu, Mn, Zr, Cr, etc.) are all less than 0.1%. This composition range is very wide, and it still has a lot of room for selection.
Difficulty in sample preparation: Removal of scratches and stains on aluminum alloy

The goal of customer: Remove scratches and check the appearance.

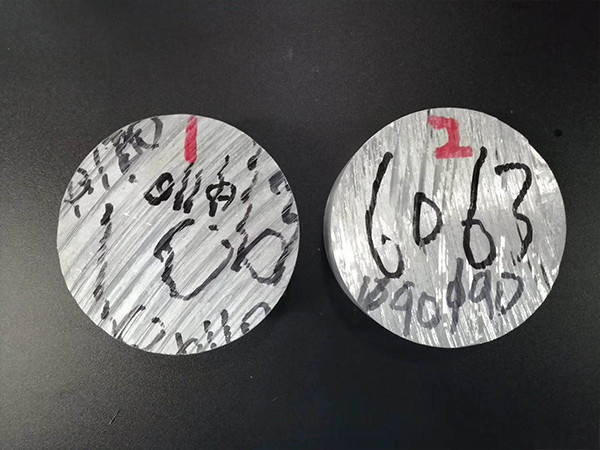

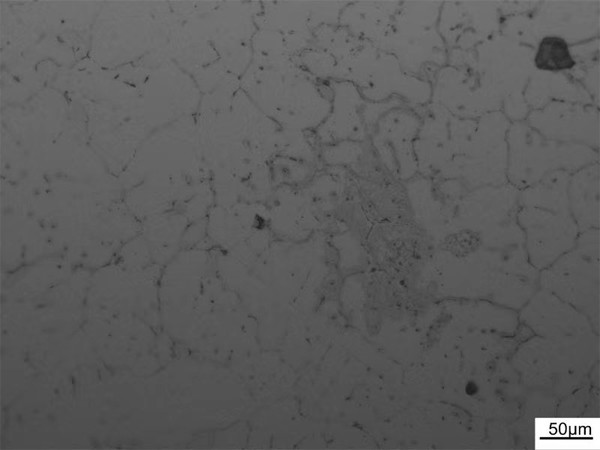

Samples Solve the stain and scratch problems in current sample preparation (Pictures provided by customers)

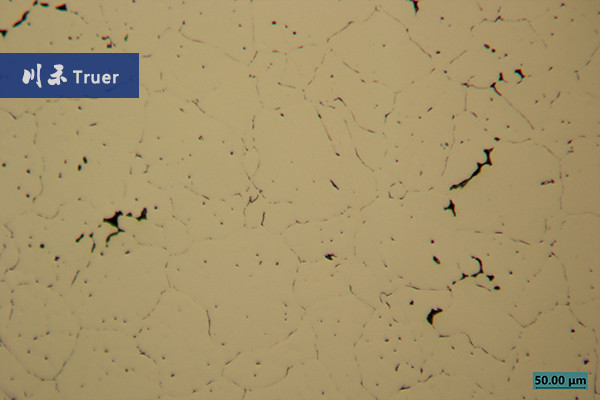

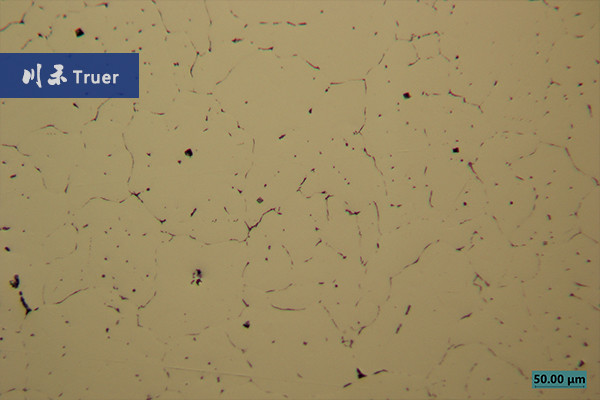

Graphs and Analysis

*The above pictures may not be reproduced without permission, otherwise legal liability will be pursued.

Solution

Cutting:

Aluminum alloy has low hardness and is easy to deform. When cutting, the cutting speed and feed rate of the cutting blade should be reduced. Use silicon carbide cutting blade for cutting.

Silicon carbide resin cutting disc

Mounting:

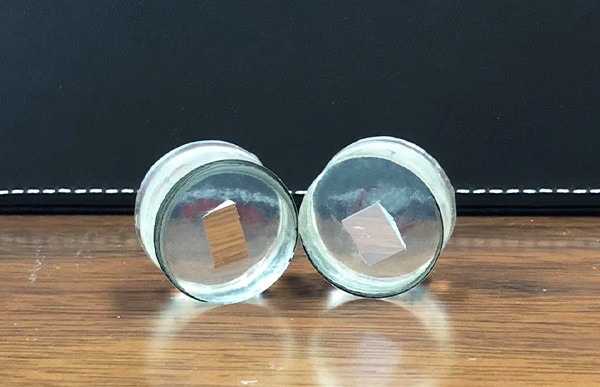

MC003 Vacuum-free Clear Cold Mounting Kit Samples after mounting

Grinding & Polishing：

No	The step of grinding & polishing	Coarse Grinding	Fine Grinding	Diamond Coarse Polishing	Diamond Fine Polishing	Diamond Final Polishing/Oxide polishing
1	Surface	SiC sandpaper	SiC sandpaper	PCY Wool fabric	PCV red short velvet	PCX Neoprene
2	Abrasive Granularity	400#	800#、1200#、4000#	3μm	1μm	0.04μm
3	Polishing/Lubricant	water	water	DS001 High performance polycrystalline diamond suspension	DS001 High performance polycrystalline diamond suspension	SiS001-JP Silicon dioxide polishing liquid
4	Pressure	30N	25N	25N	20N	15N
5	Rotation Speed	300	300	150	150	150
6	Time/min.	1	2	3~5	2~3	2~5

联系专家

Customized service is provided for your material and demands

Truer has experience engineers in technology service and experts who has abundant sample preparation skills and can provide the customized service to you.We will provide the professional preparation skill and operating proposals also can install and debug on-site.Warranty is one year for the equipment and lifetime maintenance.The technical support online and skills training can be provided annual.
