400 099 7576

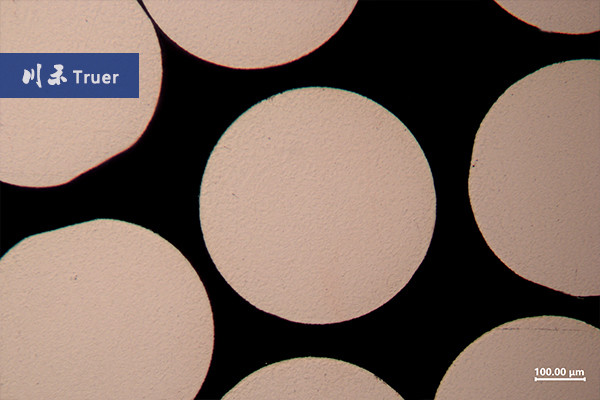

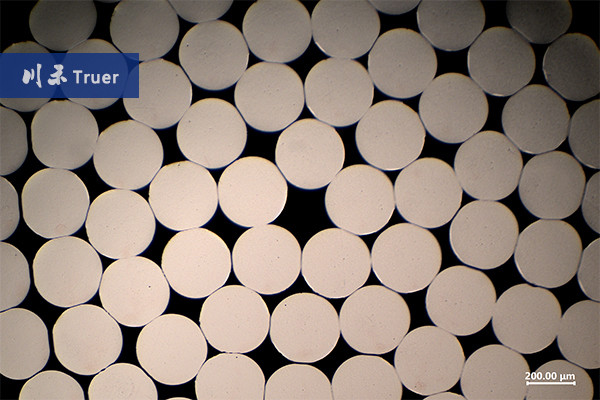

Copper wire 50X Copper wire 100X
*The above pictures may not be reproduced without permission, otherwise legal liability will be pursued.
Mounting：
.jpg)

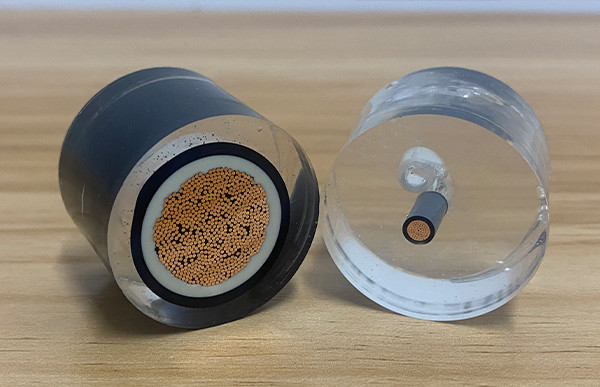

MC003 Vacuum-free Clear Cold Mounting Kit Samples after mounting
Grinding & Polishing：
|
The step of grinding & polishing |
Coarse Grinding |
Fine Grinding |
Diamond Coarse Polishing |
Diamond Fine Polishing |
Diamond Final Polishing /Oxide polishing |
|
|
1 |
Surface |
PCV red short velvet |
PCX Neoprene |
|||
|
2 |
Abrasive Granularity |
400# |
800#、1200#、4000# |
3μm |
1μm |
0.05μm |
|
3 |
Polishing/ Lubricant |
water |
water |
|||
|
4 |
Pressure |
30N |
25N |
25N |
20N |
15N |
|
5 |
Rotation Speed |
300 |
300 |
150 |
150 |
150 |
|
6 |
Time/min. |
1 |
2 |
3~5 |
2~3 |
2~5 |
The above recommended parameters are taken from: Preparation method of copper and copper alloy samples with a diameter of 30 mm and a diameter of 250 mm on the automatic grinding and polishing machine Smoothneer-6.
Truer has experience engineers in technology service and experts who has abundant sample preparation skills and can provide the customized service to you.We will provide the professional preparation skill and operating proposals also can install and debug on-site.Warranty is one year for the equipment and lifetime maintenance.The technical support online and skills training can be provided annual.
